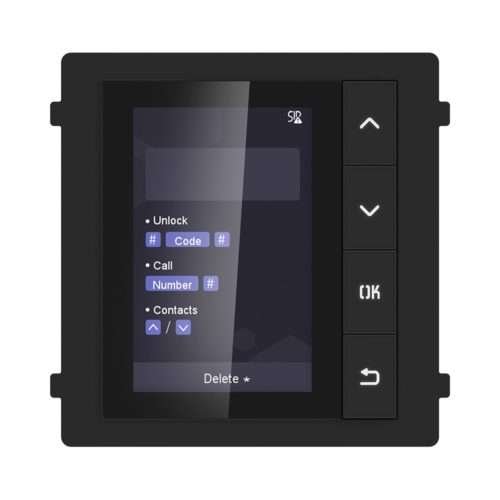

Video Intercom Display Module

Features

• The 3.5-inch LCD screen with resolution 320 × 480p
• 4 physical buttons with backlight
• Up to 2000 contacts can be added to the device
• Stores and searches contact list
• Dials number and calls indoor station with keypad module
• Unlocks the door by PIN code with keypad module
• Multiple languages

System parameters

• Processo: r Embedded MCU processor
• Storage: 64 MB
• Flash: 8 MB

Display parameters

• Screen 3.5-inch TFT LCD screen
• resolution: 320 × 480p
• Backlight Supported
• operation method: Physcial nuttons

Interfaces

• Module Connections 2 (1 input, 1 output)
• Power Input 12 VDC (from another module)
• Power Output 12 VDC (from another module)
• Physical Buttons 4 (up, down, OK, back)
• Debugging Port 1

General

• Power Consumption ≤3 W
• Working Temperature -4° to 140° F (-20° to 140° C)
• Working Humidity 10 to 95%
• IP Protection Level IP65
• Installation Flush and surface mounting
• Dimensions 3.87″ x 3.95″ x 1.33″ (98.5 mm x 100 mm x 34.2 mm)
